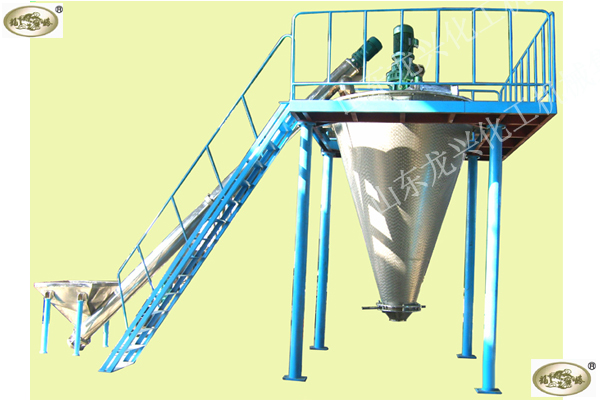

Product Name：Double Screw Mixer

Product detail：

1.Working principles:

Double Screws ConeMixer is short for the cantilever Double Screws Cone Mixer.It is suitable for thesolid –liquid,solid-solid materials mixing.

The material barrel ofthe machine is an inverted cone,in which two non-symmetrical upgrading screwsare equipped.When the screw rotates,it will produce a lfting force to make thematerial to the upper of the barrel, and aggregates in the depression thenfalls down to fill up the vacancy.

2.Uses:

It is widely used in chemical, food,building materials, rare earth, food, pesticides and dye production industry.

3.Main technical parameters：

Type		DSH-0.3c DSH-0.3p	DSH-0.5c DSH-0.5p	DSH-1c DSH-1p	DSH-1.5c DSH-1.5p	DSH-2c DSH-2p	DSH-3c DSH-3p	DSH-4c DSH-4p	DSH-6c DSH-6p	DSH-8c DSH-8p	DSH-10c DSH-10p	DSH-12c DSH-12p
Full Volume m³		0.3	0.5	1	1.5	2	3	4	6	8	10	12
Load Factor		0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
Output(t/h)		0.3-1	0.5-1.5	2-2.5	2-4	2.5-5	3.5-8	5-10	7.5-15	10-12	12-25	15-30
Total Powerk(w)	A	3.55	3.55	4.55	4.75	6.05	8.05	12.5	16.5	20	20	23.5
Total Powerk(w)	B	2.2	3	4	5.5	5.5	7.5	11	15	18.5	18.5	22
Particle Size (mesh)		20-450
Mixing uniformity		Relative deviation <1.5%
Revolution		2
Rotation	A	143		57					70
Rotation	B	143		57
Miximum Diameter (mm)		930	1130	1500	1633	1830	2040	2250	2548	2780	3018	3204
Weight(kg)		550	600	1200	1350	1500	2300	2520	3160	3600	3950	4150
