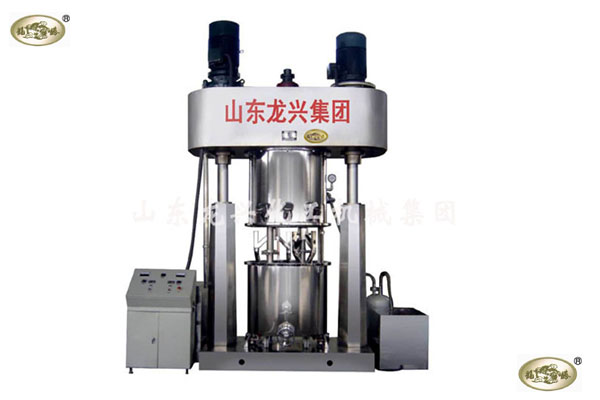

 Product Name:Dual Planetary Disperser
Product detail:

 1.Descriptions:
    The machine has the high-speed, low speed, mobile scraper,which can be used for mixing, cutting,  dissolving, scraping the wall. A scraper on the planet carrier rotates and constantly scrapes the barrel wall.Because the barrel wall is finished by the large vertical lathe and is polished by the large-scale automatic polishing machine,the rotation of the scraper will completely scrape the material in the barrel wall,which will improving the mixing effetiency. The unique temperature detection device in the transmission shaft ensures that the material temperature error is less than +-1 Degree Centrigrade.

    2.Uses:
(1) Energy: a variety of battery pulp material, paste material (lithium battery, nickel cadmium batteries, nickel hydrogen batteries, fuel cell, battery, etc.);
(2) Electronics: solder paste, ceramic slurry, magnetic materials, silicone ink, electronic adhesives, pvc plastic, electronic parts sealant, hot melt adhesives, various precious metal powder, paste;
(3) Chemical products: all kinds of sealants, adhesives (silicone sealant, polysulfide sealant, insulating glass sealant, waterproof sealant, structural sealant, anaerobic adhesive, stone glue, plastic mold, etc.), synthetic resin, rubber , ink, putty, abrasive (paste), wax products, synthetic rubber, synthetic resin, various kinds of powder materials, ceramic pigment;
(4) Medicine products: various kinds of soft cream, polymer gel (medical stickers, children stickers fever, cold fast paste, ice patch, eye patch), dental materials;
(5)Cosmetics, daily chemical products: moisturizer, lipstick, lotion, gel, mask, mascara, foundation, nail polish, toothpaste, soap.
(6) Food: all kinds of mushy, paste materials mixture, seasonings, jam, chocolate paste.

    3.Notes:
    (1) The device can be designed according to the user's specific requirements.
    (2) Due to the rapid upgrading of technology, the right technical parameters are subject to the real product.
    (3) If you have some problems,please call us,then our professional sales engineers will help you.

   4.Main technical parameters:

Type
SXDHJ5L
SXDHJ 15L
SXDHJ 30L
SXDHJ 50L
SXDHJ 100L
Bucket Size
Ø280*180
Ø280*325
Ø400*325
Ø480*365
Ø550*550
Revolution Motor
1.5Kw
2.2Kw
3Kw
4Kw
5.5Kw
Revolution Speed
(frequency control)r/min
0-60
0-84
0-62
0-70
Rotation Speed
(frequency control)r/min
0-100
0-130
0-75
0-110
Dispersion speed (frequency control)
 r / min
0-1430
0-1500
0-1500
0-1500
0-2000
Vacuum( Mpa)
<= - 0.098
Weight (kg)
300
2000
2000
3000
3500

Dimensions
(mm)
L
700
1700
2170
2300
1900
W
400
650
950
1080
1100
H
1700
1700
2080
2400
3960
